Beam Smoke Detector
Reliable High-Quality Beam Smoke Detector

Buy Best Price Beam Smoke Detector from Abhishek Fire Protection Pvt Ltd – manufacturer, leading exporter and supplier of high-quality Smoke Detectors known for its class leading Features and Reliability. Abhishek Fire Protection Pvt Ltd offers Beam Smoke Detector in the category of Fire Fighting Accessories by using high-end latest machinery to meet Indian and International Fire Safety Industry Standards.


Beam Smoke Detector



Description of Beam Smoke Detector

Description of Abhishek Fire Protection Pvt Ltd's Beam Smoke Detector

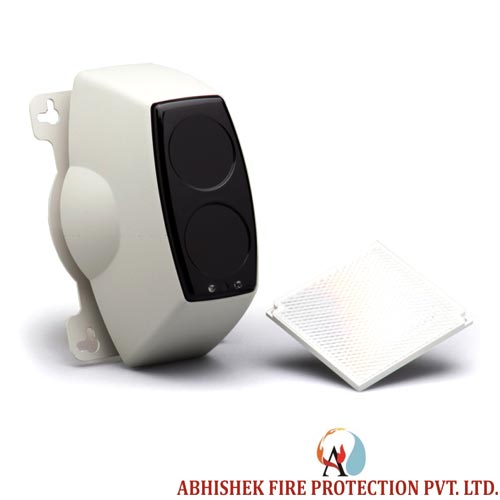

The Beam Smoke Detector kit includes a an optical beam smoke detector transceiver, system controller, and a reflective prism. An alarm signal is triggered when smoke enters the beam path and is ideally suitable for the protection of large areas where the use of conventional detection tools would prove difficult and/or costly to install. When installed, optical beam detector projects a well-defined beam to the reflective prism, which returns the beam to the detector for analysis.

Features ion of Abhishek Fire Protection Pvt Ltd's Beam Smoke Detector
  • Features integral laser alignment aid and cost effective and quick to install.
  • An alarm signal is activated when smoke enters the beam path.
  • Low level system controller monitors the detector and indicates the status of the protected area.
  • Automatically align to its optimum position and automatic contamination and building shift compensation i.e. the beam automatically realigns to compensate for contamination and gradual building shift.
  • Transceiver projects a beam to the reflective prism which returns the beam to the transceiver.
  • Protects large areas where traditional detection technologies are not suitable for conventional detectors.


Each kit includes
  • 1 x System Controller - wires into an existing fire alarm control panel
  • 1 x Reflective Prism (50 m version) or 4 x Reflective Prisms (100 m version)
  • 1 x Optical Beam Smoke Detector - combined transmitter and receiver (transceiver)


Specifications of Beam Smoke Detector

Specifications of Abhishek Fire Protection Pvt Ltd.'s Beam Smoke Detector

Best Price
Company: Abhishek Fire Protection Pvt Ltd
Category: Smoke Detectors
Product name: Beam Smoke Detector
Operating Temperature: 0 °C to +55 °C
Dimensions (H x W x D)
Beam Detector (including easy fit base): 134 x 135 x 134 mm
Reflective Prism: 105 x 100 x 9.5 mm
System Controller (including base): 235 x 200 x 71 mm
Operating Voltage: 14-36 V
IP Rating: IP54
Cable Length: 100 m max. - 2 core cable
Weight: 1.67 kg
Relative Humidity: 93%
Application: Smoke detection in fire alarm systems
Other Specifications: Available on Request
MOQ: 1 Pc
Packaging Details:            Carton/ Bubble Wrapping/ Box
