Fire Fighting Accessories
Reliable High-Quality Fire Fighting Accessories

Jockey Pump are inline Vertical Multistage Stainless Steel Pump used in Fire Fighting systems as vertical pumps.

Features of Abhishek Fire Protection Pvt Ltd's Jockey Pump:

• Inline vertical multistage SS pump with 2 pole motors.
• Maximum vibration level 80 dB with CE marked, IE2 efficient motor
• 'F' – class insulation IP55 and DN standard Inlet – outlet flange
• Heavy duty bearing ensures long life.
• Available both in soft packed stuffing and mechanical seal box design.
• Dimensions and characteristics according to DIN 24255 standards
• Functionally designed to all allow interchangeability of their components between all individual pump sizes.
• Minimized shaft deflection prolongs the life of the mechanical seal and bearing.
• Enhanced performance and maximum efficiency reduce the operating cost.
• Low noise and vibration levels lead to being environment friendly.

Applications of Jockey Pump

• In High Pressure Fire Fighting Systems.
• Pressure maintenance Pump in Fire Fighting Systems.
• In Industrial, Commercial and Residential Fire Fighting Applications.

Booster Pump is self-priming, CED coated pump with brass impeller, high performance, easy installation, efficiency, and reliability. Suitable for self-priming up to 8 meters and is equipped with class F insulation and thermal overload protector. Abhishek Fire Protection Pvt Ltd's Booster Pump is used for various purposes such as in firefighting systems, homes, apartments, offices, and industries. Made from aluminium pressure die-cast motor body and class F insulation. With 2880 rpm, 0.5 HP power, 50 Hz frequency, 6-25 m head, and 25 mm diameter, running on 180-240 V voltage.

Features of Abhishek Fire Protection Pvt Ltd's Main Pump:

• Heavy duty bearing ensures long life.
• Available both in soft packed stuffing and mechanical seal box design.
• Back pull out design facilities disassembling the pumps without disturbing the pumping system.
• Dimensions and characteristics according to DIN 24255 standards
• Functionally designed to all allow interchangeability of their components between all individual pump sizes.
• Minimized shaft deflection prolongs the life of the mechanical seal and bearing.
• Enhanced performance and maximum efficiency reduce the operating cost.
• Low noise and vibration levels lead to being environment friendly.

Description of Abhishek Fire Protection Pvt Ltd's:
Right-time functioning of firefighting products are the guarantee that water will be delivered to put out a fire. Operating dependability is the key to Fire Protection Systems. At Abhishek Fire Protection Pvt Ltd, we provide customers with pumps and other equipment forming part of a fixed system for fire-fighting. We offer the required Sprinkler Pump, pressure booster systems and all-in products from a single source.

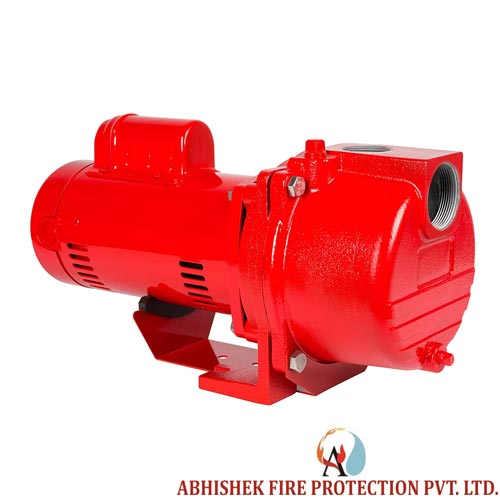

Principle of Operation
The sprinkler system pressure drops considerably when one or more fire sprinklers are exposed to heat above their intended design temperature and subsequently open, releasing water. The Sprinkler pump starts when a threshold drop in the pressure is detected in the fire sprinkler system. Alternately then other connected reels, fire hoses, or other firefighting connections are opened, leading to a pressure drop in the firefighting main.

Features of Abhishek Fire Protection Pvt Ltd's Hydrant Valves
Hydrant Valves are also called as Landing Valves which provide means to draw water for firefighting and fire water piping network systems. Hydrant Valves are 63 mm Single outlet Landing Valve as per IS: 5290 Type A specifications. These ISI marked hydrant valves are available in 63 mm female inst. outlet. These are manufactured by using Gunmetal of IS 318 LTB2 / SS304 / SS316 specifications. Valve inlet is in flanged type and the outlet is generally female inst. and male inst.

Description of Abhishek Fire Protection Pvt Ltd's
Butterfly Valves are used in firefighting systems, the fields of water supply, industrial applications and the chemical industry, as well as water/waste water treatment. The concentric and single-eccentric designs are available as standard and double-eccentric and triple-eccentric shut-off valves are also available for projects on request. Use of matched control components such as positioners, position indicators, and process controllers allows Butterfly Valves to also be used in control circuits.

Description of Abhishek Fire Protection Pvt Ltd's:

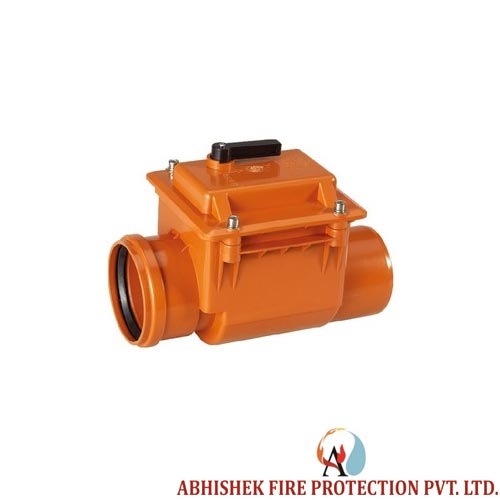

Non Return Valves are used to stop the flow in one direction and allow free flow in the opposite direction and are used to pre-tension or protection of hydraulic mechanisms against pressure surges. Abhishek Fire Protection Pvt Ltd's Non Return Valves are easy to operate, maintain and repair and superior for shutoff and control applications and are very flexible across many industries due to its range of operation (pressure upto 15000 psi and temp upto 400 degree C).

Accurate and Long-lasting Fire Hose Valves for Fire Protection and Testing
Fire Hose Valve are functionally designed for use with fire cabinet, hose storage devices and hydrants as a fire department outlet connection and used for with a fire hose rack assembly. NFPA requires restricting valves where the inlet pressure exceeds 100 PSI. Fire Hose Valves are designed.

By pre-setting orifice and pin, firefighters are limited to increase the volume of water and thereby lower the pressure of the flowing water. Pin may be removed by firefighters to allow a fully open valve. Pressure checking hose valves are used to restrict the pressure of flowing water up to 175 PSI. Fire Hose Valves are available in 1½" and 2½" Male NST or Female NPT.

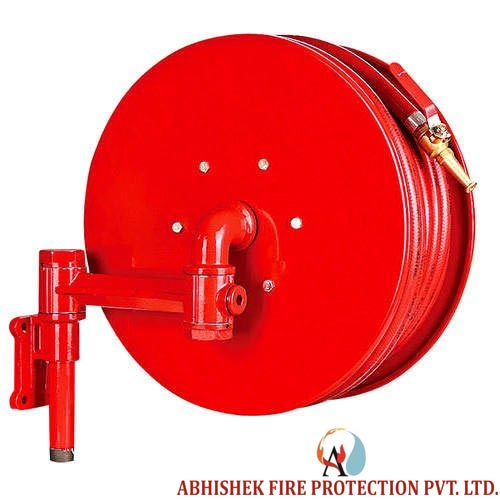

Features of Abhishek Fire Protection Pvt Ltd's Fire Hose Reel:

• Made from non-ferrous metal (Aluminium Alloy) for making it corrosion free,
• Maximum efficiency reduce the operating cost.
• Enhanced performance and duly powder coated.
• Environment Friendly.

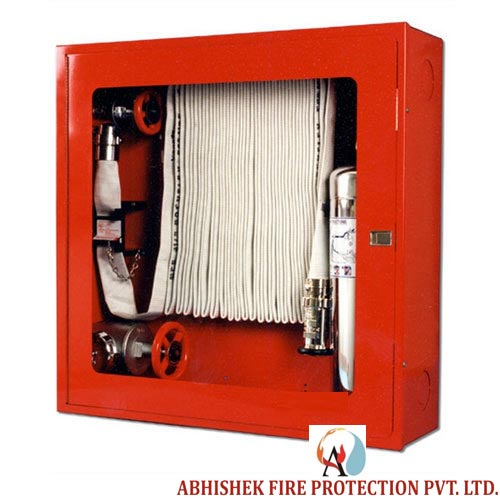

Features of Abhishek Fire Protection Pvt Ltd's Fire Hose Cabinet:
The Fire Hose Cabinet is suitable for putting up two sets of 63 mm diameter X 15 meter length Hose Pipes with nozzles. In front two doors are provided with an acrylic sheet with locking arrangement and handle.

Features of Abhishek Fire Protection Pvt Ltd's Hose Box
Hose Box is suitable for putting up two sets of 63 mm diameter X 15 meter length Hose Pipes with nozzle. In front two doors are provided with an acrylic sheet with locking arrangement and handle.

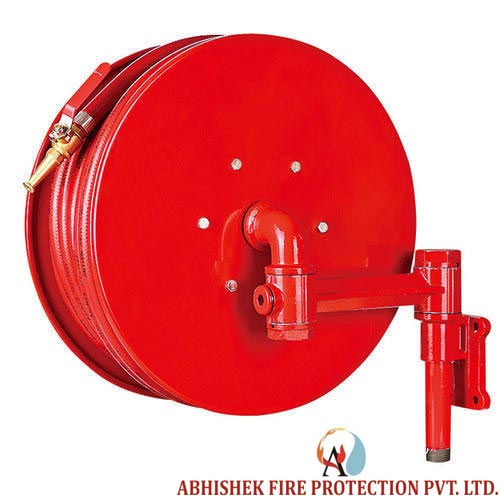

Long-lasting Hose Reel Drum for Fire Hose Reel
Hose Reel Drum are made from high quality mild steel materials to ensure for high tensile strength and durability and is quality tested by experts certifying its sturdiness. Hose Reel Drums finds firefighting purposes and finds usage in hotels, buildings, shopping centers, multi storey buildings, etc.

Accurate and Long-lasting Gauges for Fire Protection and Testing
Features of Abhishek Fire Protection Pvt Ltd's Fire Fighting Gauge: Fire Fighting Gauge is Air/Water Pressure Gauge is a pressure taking gauge for air and water-based systems, including plumbing and fire suppression systems. This Air/Water Pressure Gauge features a 4" (101.6 mm) pressure gauge with a range of 0 PSI to 300 PSI and accuracy to +/-3/2/3% of span in accordance with NFPA 25. When properly installed, this gauge removes the necessity to shut off the system's water supply while installing or removing gauges, making inspection and pressure testing effortless. Firefighting gauges are selected for their proven accuracy and field-tested longevity, whether for hydrant flow testing or fire protection systems. Whether you need a team's worth of inspector's gauges, or one sprinkler air/water gauge or we have the expertise, inventory, and fast delivery to get you offline and into the field quickly.

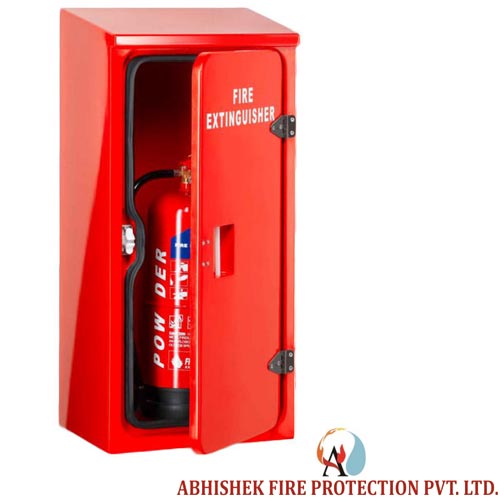

Fire Extinguisher Cabinet offers protection for your firefighting parts and equipment from the harsh environments and weather as well as from accidental damage and tampering and are anti-theft devices provide an additional deterrent against theft, guaranteeing that your extinguisher is in the right place at all times.

The Fire Extinguisher Cabinet is a weatherproof, protective, and sealed cabinet made from impact resistant polypropylene. The cabinet gives high visibility storage space for 6 kg / 6 litre or 9 kg / 9 litre fire extinguishers. They are suitable for all locations including shops, warehouses, schools, and other industrial locations.
